FPSO

Fire Water Pump Systems for FPSOs – Proven Dry Mounted Solutions

Fire safety is non-negotiable in Offshore operations. On FPSOs, FLNGs and platforms, an immediate and reliable fire water supply is critical when an incident occurs. Fischcon delivers fully self-contained, dry mounted fire water pump systems, engineered for the harsh demands of Offshore firefighting.

With over 125 installations delivered, Fischcon is a trusted partner to the world’s leading FPSO operators. Our fire water pump packages offer a compact and efficient solution, with outputs up to 2900 m³ at 12 bar for a single unit.

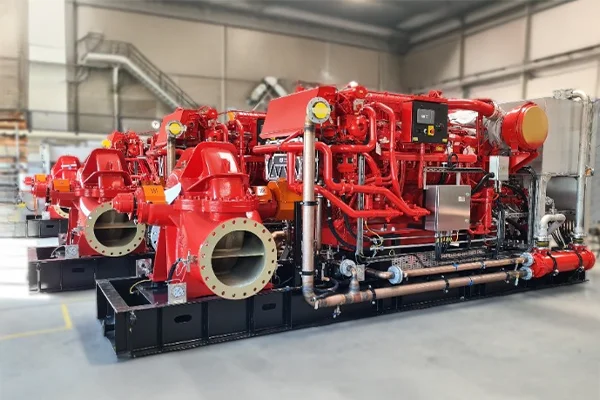

Engineered for Offshore Fire Protection

Active firefighting on FPSOs, FSRUs and FLNG units requires instant water delivery. Fischcon fire water pump systems secure the fire ring main with a guaranteed water supply, even under extreme Offshore conditions.

Our systems are entirely designed, built, and tested in-house. All with Certification according the latest Marine Class Rules and Regulations like there are ABS, DNV, BV, LR, RINA and more.

Engineered for Offshore Fire Protection

Dry Mounted Fire Water Pump System: A Smarter Design

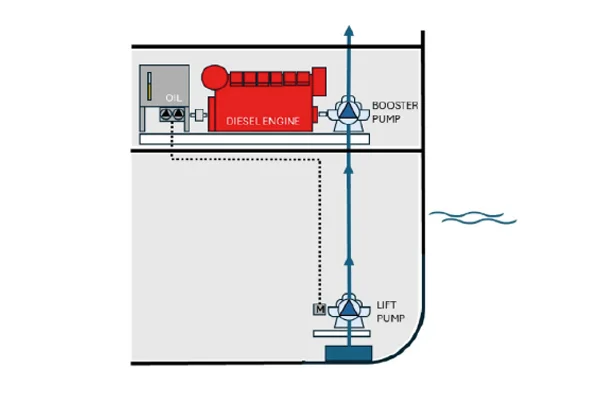

At the heart of Fischcon’s solution is the dry mounted, hydraulically driven lift pump, combined with a diesel driven booster pump.

Basic Design

  • Dry mounted lift pump installed inside the hull, below water level.
  • Suction connected directly to a sea chest.
  • Booster pump located below or at deck level, powered by a diesel engine.

Installation Flexibility

  • Lift pump positioned in dry compartments such as void spaces or ballast tanks.
  • Booster pump and hydraulic power pack placed below deck, eliminating the need for external enclosures.
  • Fully skid-mounted solutions for efficient shipyard installation.

Easy Access and Reduced Downtime

  • Direct access for inspection, service, and maintenance.
  • No need for lifting operations during repair or overhaul.
  • No protective caisson required as with submerged systems.

Advantages Over Submerged Pump Systems

Compared to submerged lift pumps, Fischcon’s dry mounted design offers clear operational and maintenance benefits:

  • Superior Accessibility: Quick and safe maintenance without complex retrieval procedures.
  • Space Efficiency: Preserves valuable open deck area by housing all major components below deck.
  • Adaptability: Lift pump can be installed in ballast tanks if required.
  • Energy Efficiency: Horizontally split case pumps ensure high efficiency and low NPSH requirements.
  • Lower Installation Costs: No external structures or complicated Offshore installation work.
  • Reduced Maintenance Effort: Simplified access translates directly into lower maintenance costs and downtime.

System Configurations

Hydrostatic Configurations (lower capacities):

  • Single hydraulic driven lift pump below waterline supplying the fire water ring main.

Diesel-Hydraulic Configurations (higher capacities):

  • Lift pump feeding a diesel driven booster pump in series.
  • Capacity up to 2,900 m³/h at 12 bar per unit.

Skid-Mounted Modular Design:

  • Custom-built for each vessel layout.
  • Suitable for new builds, retrofits, and brownfield upgrades.

System Configurations

Fire Water Pump Systems for FPSOs - Proven Dry Mounted Solutions View pdf

Why FPSO Operators Choose Fischcon

  • Proven reliability with 125 installations delivered.
  • Custom-engineered for each FPSO layout.
  • Performance to NFPA-20 and marine classification standards.
  • Compact dry mounted design eliminating caissons and external enclosures.
  • Superior accessibility and simplified maintenance.
  • Energy-efficient horizontally split case pumps.
  • Full-capacity witnessed testing at our own facility.
  • Comprehensive lifecycle support and spare parts management.

The Reliable Alternative

Fischcon’s dry mounted fire water pump system offers a superior alternative to submerged solutions. With simplified installation, easier maintenance, lower lifecycle costs and proven offshore reliability, our systems help safeguard FPSO operations — when every second counts.

References

FPSO Liza Unity - SBM / ExxonMobil

FPSO Liza Unity – autonomous skid-mounted fire-water pump package for offshore safety

Project
FLNG Prelude - Shell

Bespoke fire water solution for one of the world’s most advanced offshore projects

Project
